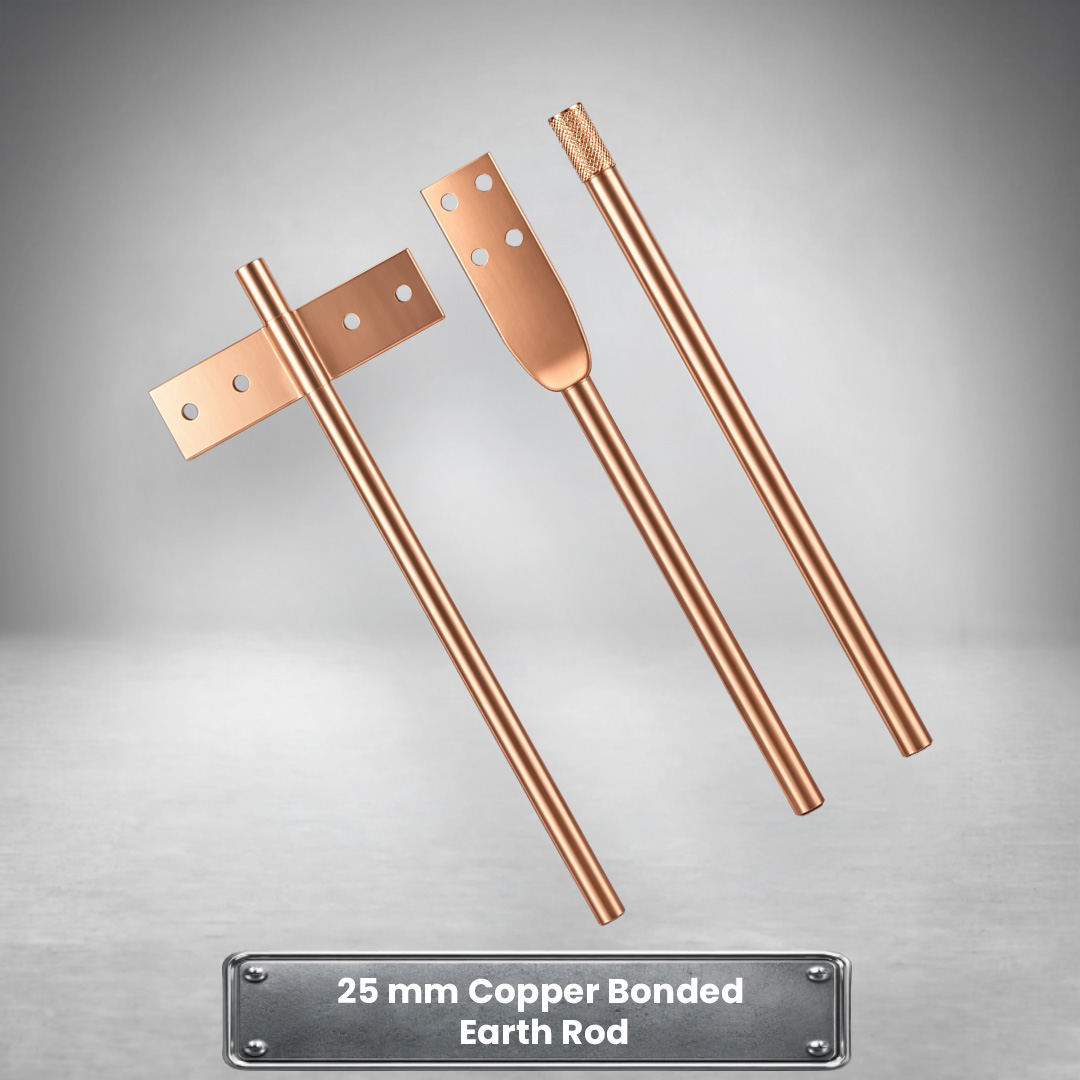

25 mm Copper Bonded Earth Rod
Product Overview
For critical electrical systems, a 25 mm copper bonded earthing rod provides dependable grounding. It is manufactured using a molecular bonding process that fuses a 250-micron layer of pure copper onto a high-strength steel core, ensuring excellent conductivity and durability. Unlike GI electrodes, it resists corrosion and performs reliably for 25–30 years, even in harsh soil conditions. The strong bond prevents peeling, maintaining stable resistance over time. Designed as per IS 3043 standards, it is widely used in industrial, solar, telecom, and infrastructure projects. Its threaded design allows deeper installation, making it suitable for high-resistivity soil conditions.
Technical Specifications
| Specification | Value |
|---|---|
| Diameter | 25 mm |
| Core Material | High-tensile steel (>= 600 N/mm2) |
| Copper Layer | 250 microns — molecular bonding process |
| Lengths | 1 m, 1.5 m, 2 m, 3 m standard; custom on request |
| Coupling | Threaded end for multi-section deep installation |
| Standard | IS 3043 — Code of Practice for Earthing |
| Corrosion | Resistant to acidic, alkaline, saline soil conditions |
| Expected Life | 25–30+ years underground service |
| Application | Substations / Critical Infrastructure |
| Supply | Pan-India from Salem, Tamil Nadu |
Key Features
- 25 mm diameter, IS 3043 compliant — engineered specifically for substations, critical infrastructure, and heavy-duty industrial earthing systems
- 250-micron molecularly bonded copper layer — permanently fused to the steel core; will not peel, flake, or delaminate even after decades underground
- 6x higher electrical conductivity than GI electrodes — significantly lower earth resistance, improving fault current dissipation and system safety
- 25–30+ year underground service life — outlasts GI, bare copper, and uncoated steel rods in virtually every soil type across India
- High-tensile steel core (≥600 N/mm²) — withstands deep-drive hammer installation without bending or breaking
- Threaded coupling for multi-section deep installation — extend rod depth easily to meet site-specific earth resistance targets
- Resistant to acidic, alkaline, saline & industrial soils — ideal for coastal sites, chemical plants, and all high-corrosivity zones
- Achieves ≤1 ohm earth resistance with appropriate backfill compound in most Indian soil conditions
- Available in standard lengths — 1 m, 1.5 m, 2 m, 3 m; custom lengths available on request
- Manufacturer-direct pricing — supplied pan-India from our factory in Salem, Tamil Nadu
Applications
- Grid substations & critical power infrastructure — meets IS 3043 earthing requirements for HV/EHV substations where fault currents are highest
- Solar power plants (DC & AC side) — provides reliable earthing for solar PV arrays, inverters, and AC distribution panels
- Data centres & server rooms — ensures zero-noise, low-impedance earthing for sensitive IT equipment and UPS systems
- Hospitals & healthcare facilities — critical for medical-grade earthing to protect life-support and diagnostic equipment
- Telecom towers & communication infrastructure — shields against lightning surges and signal interference
- Industrial manufacturing plants — earths high-power machinery, transformers, and motor control centres
- Lightning protection systems (LPS) — serves as the earth termination electrode for air terminals and down conductors
- Railway & metro infrastructure — used in signal earthing and traction system earthing networks
- Oil, gas & petrochemical facilities — corrosion-resistant performance in chemically aggressive environments
- Residential & commercial complexes — provides reliable earthing for main LT panels, generators, and DG sets
Frequently Asked Questions (FAQs)
What is a 25 mm copper bonded earth rod and what is it used for?
A 25 mm copper bonded earth rod is a grounding electrode consisting of a high-tensile steel core coated with 250 microns of molecularly bonded electrolytic copper. It is used to create a low-resistance electrical connection between an installation and the earth, dissipating fault currents safely. The 25 mm diameter makes it ideal for substations, solar power plants, data centres, industrial facilities, and other high-load applications requiring IS 3043 compliant earthing.
How long does a copper bonded earth rod last underground?
Thunder Earthing's 25 mm copper bonded earth rod has an expected underground service life of 25–30+ years. The molecularly bonded 250-micron copper layer does not delaminate or corrode like electroplated or clad alternatives. In most Indian soil types, it performs consistently for decades — making it significantly more cost-effective than GI or bare steel rods which may need replacement every 5–10 years.
Is the 25 mm copper bonded earth rod IS 3043 compliant?
Yes. Thunder Earthing's 25 mm copper bonded earth rod is fully manufactured in compliance with IS 3043 — the Indian Standard Code of Practice for Earthing. It meets all specified requirements for earth electrode material, copper coating thickness (minimum 250 microns), electrical conductivity, and corrosion resistance. It is also compatible with BS 7430 and IEEE 80 earthing system designs.
Can I extend the 25 mm earth rod for deeper installation?
Yes. The 25 mm copper bonded earth rod features threaded ends that allow easy coupling with a separate threaded connector, enabling you to join multiple rods end-to-end for deep-driven installations. This is especially useful on high-resistivity soil sites where a single rod length may not achieve the required earth resistance of ≤1 ohm as per IS 3043. Standard driving couplers and pointed tips are available from Thunder Earthing.
What is the difference between a copper bonded earth rod and a GI earth rod?
A copper bonded earth rod has a steel core coated with 250 microns of pure electrolytic copper using molecular bonding, delivering near-solid-copper conductivity and 25–30+ year corrosion resistance. A GI (Galvanised Iron) earth rod is steel coated with zinc, which corrodes rapidly in most Indian soil conditions — typically within 3–7 years. Copper bonded rods offer 6x higher conductivity, far longer life, and IS 3043 compliance that GI rods cannot match for critical infrastructure projects.
Do you supply 20 mm copper bonded earth rods in bulk?
Yes. Thunder Earthing accepts bulk orders for 20 mm copper bonded earth rods with short lead times. We supply to EPC contractors, project developers, government agencies, and wholesale distributors across India. Custom lengths, project-specific requirements, and pan-India delivery are available.
