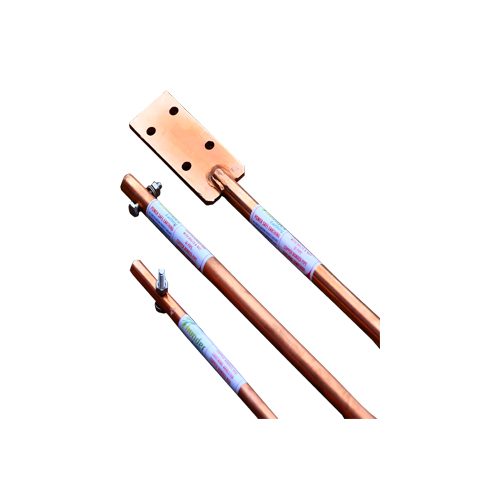

Copper Bonded Earthing Rod
Copper Bonded Earthing Rod
Every electrical system needs a safe place for fault current to go. That’s the whole job of a copper bonded earthing rod — give it that path, reliably, for as long as the building around it stands.
Thunder Earthing manufactures our copper bonded earthing rods at our own facility in Salem, Tamil Nadu. Each rod combines a high-tensile, low-carbon steel core with a 250-micron layer of 99.9% pure electrolytic copper, molecularly bonded onto it, not sprayed, not dipped, but fused at the atomic level.
The steel gives it the strength to be driven deep into hard or rocky soil. The copper gives it the conductivity that actually makes the earthing work. Together, you get a rod that performs close to solid copper, at a fraction of the cost.
How Molecular Bonding Actually Works
Not every “copper-coated” rod on the market is made the same way, and the difference matters more than the price tag suggests.
Cheaper rods are usually electroplated — a thin copper film, often just 20 to 80 microns, applied over the surface of the steel. It looks fine on a shelf. Underground, it behaves very differently. That thin layer can crack, peel, or delaminate, either from the shock of being driven in, or from years of soil movement. Once it peels, the steel underneath starts corroding, and your earth resistance quietly climbs without any warning.
Molecular bonding works differently. Copper is deposited atom by atom directly onto the steel, across every millimetre of the rod — including the tip and the threaded ends, which take the most abuse during installation. There’s no separate layer to peel, because the copper and steel have effectively become one surface. That’s the difference between a rod that fails in five years and one still doing its job twenty-five years later.
Copper Bonded vs Electroplated vs Solid Copper
- Petrochemical, LNG and nuclear facilities
- Data centres, telecom, and broadcasters
- Process control and automation
- Corrections, hospitals, and 911 centres
- Government, military, and defense installations
- T & D operations, substations, and wind turbines
Applications
| Type | Copper layer | Cost | Best suited for |
| Electroplated | 20–80 microns, surface coating | Lowest | Short-term or low-budget, non-critical jobs |
| Copper bonded (Thunder Earthing) | 250 microns, molecularly fused | Mid-range | Industrial, commercial & infrastructure — anywhere IS 3043 compliance is required |
| Solid copper | 100% copper, no steel core | Highest | Extreme corrosion environments, budget not a constraint |
For nearly every IS 3043-compliant installation in India — a substation, a hospital, a telecom tower — a properly molecularly bonded copper bonded earthing rod gives you performance close to solid copper, without the cost that makes solid copper impractical at scale.
IS 3043: The Standard Behind Every Rod We Make
- IS 3043 is the Bureau of Indian Standards’ Code of Practice for Earthing — the rulebook that governs how earthing systems are designed and installed across India. It sets out electrode types, expected copper thickness, installation depth, and the earth resistance target your system needs to hit, typically ≤1 ohm for industrial systems.
- Every copper bonded earthing rod we manufacture is built to meet IS 3043’s requirements for copper thickness, core strength, and corrosion resistance — checked batch by batch before anything leaves our facility.
Where These Rods Get Used
Industrial and commercial buildings
Industrial and commercial buildings
Data centres and telecom towers
Stable, low-noise earth reference for sensitive electronics
Solar power plants
DC string earthing, inverter earthing, lightning protection grids
Substations
Transformer neutral and switchgear earthing
Hospitals
Patient safety earthing
Railways
Traction substations and signaling equipment
Oil and Gas
Corrosion resistance where soil conditions are harshest
Airports
Runway lighting circuits, control tower lightning protection, and radar equipment earthing
Why Engineers Specify Thunder Earthing
We manufacture every copper bonded earthing rod in-house, at our own facility in Salem, Tamil Nadu — nothing is outsourced or resold under our name. Each batch goes through checks on copper thickness, tensile strength, and corrosion resistance before it ships.
We supply pan-India, directly to electrical contractors, EPC companies, consultants, and project owners — which means manufacturer-direct pricing and technical support from people who understand the product, not a reseller reading off a spec sheet.
Choose Your Rod Size
The right diameter depends on your soil resistivity, target earth resistance, and how deep you can drive the rod at your site.
