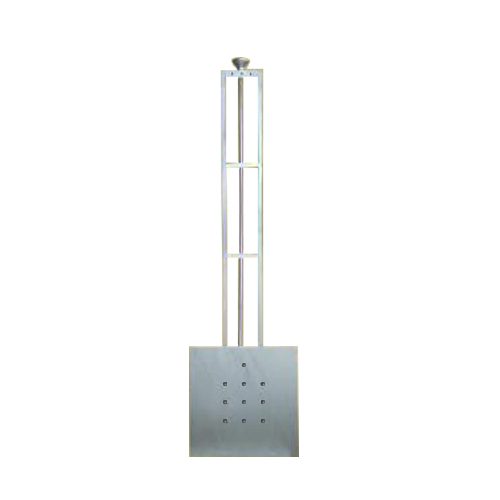

GI Plate Earthing
GI Plate Earthing
Hot Dip Galvanized Steel plates are manufactured in accordance with IS 3043:2018 with an average Zinc coating of 70-80microns for Earthing Applications.
NB: Customised Products are also available at Customer Request. Please be in touch with us for more information.
Features
- Specialised for Earthing Applications
- Standard Coating Thickness: 70 – 80 microns
Technical Specifications
| Specifications | Details |
|---|---|
| Base Material | Mild Steel |
| Coating Material | Zinc |
| Coating Thickness | 70 – 80 Microns (Avg) |
| Dimension | 2ft X 2ft |
| Available Thickness | 6mm |
| Strip Dimension (optional) | 25mm x 3mm |
| Overall Length Including Strip | 2m,3m |
| Dimension of Water Hole Pipe (optional) | Hot Dip Galvanized Pipe 25mm dia |
