Copper Bonded Earthing Electrode
Product Overview

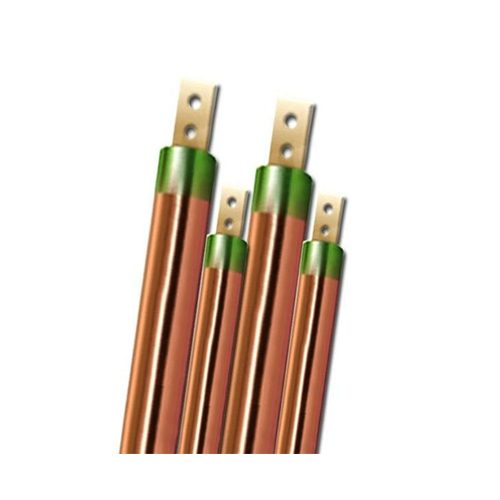

A copper bonded earthing electrode is an earthing rod created by permanently bonding a coat of 99.9% pure electrolytic copper onto a low-carbon steel core. The bonding occurs at a molecular level instead of through surface plating, which means that the copper coat lasts for years even when it is hammer-driven and comes into contact with the soil.
These electrodes are also widely referred to as copper bonded pipes, since the earthing industry uses the terms “rod” and “pipe” interchangeably to describe the same solid, cylindrical copper bonded construction.
This construction gives the electrode two things at once: the mechanical strength of steel to handle deep driving into hard or rocky ground, and the conductivity and corrosion resistance of copper to keep earth resistance low for the long term. That combination is why copper bonded electrodes have become the standard specification for protective earthing across Indian electrical installations.
Every electrode we supply is built to IS 3043, the Bureau of Indian Standards code of practice for earthing, and is designed for a working life of 20 years or more in normal soil conditions.
How Electrolytic Copper Bonding Works
In the process known as electrochemical bonding, a layer of copper is deposited onto the steel substrate in an electrolytic bath. Instead of a coating on the surface, a solid metallurgical bond is formed.
Because the copper is integrated within the steel rather than being attached on its surface, there’s no risk of peeling or breaking away while the rod is thrust into compressed or rocky ground.
The result is a uniform copper layer that wears down slowly and evenly over decades, rather than failing in patches tthe way galvanized iron earthing electrodes can deteriorate once their zinc layer is breached. This same bonding process is used whether the finished product is sold as a copper bonded earthing electrode or a copper bonded pipes the manufacturing standard doesn’t change with the name.
Key Features
- High conductivity from a pure electrolytic copper coating
- Uniform molecular bond — no peeling, cracking, or flaking under driving stress
- Corrosion resistance across all soil types, including acidic and high-moisture soils
- Long service life — 20+ years in normal soil conditions
- High tensile strength steel core for deep, straight driving
- Maintenance-free performance once installed
- IS 3043-compliant construction
Choose Your Copper Bonded Earthing Electrode Size
Copper Bonded Electrodes Specifications
| Parameter | Details |
|---|---|
| Material | Copper Bonded Steel |
| Copper Coating | 100–250 Microns |
| Diameter | 14 mm to 80 mm (Various Sizes) |
| Length | 1m / 2m / 3m (Custom Available) |
| Type | Rod / Pipe Electrode |
| Standard | IS 3043 |
| Application | Earthing & Grounding Systems |
Applications
Industrial & substation grounding Ring earthing using multiple electrodes connected by copper strip, standard for factories, power plants, and HT/LT substations.
Solar power plant earthing IS 3043-compliant grounding for array, inverter, and perimeter earthing in solar installations.
Commercial buildings & IT parks Dedicated earthing for server rooms, UPS systems, lifts, DG sets, and HVAC systems requiring low-resistance grounding.
Telecom towers Equipment protection and lightning protection earthing for base transceiver stations.
Residential complexes Compliant earthing for apartment blocks, individual homes, and gated communities.
Comparison Table
| Feature | Copper Bonded | GI Electrode | Pure Copper |
|---|---|---|---|
| Conductivity | High | Medium | Very High |
| Cost | Moderate | Low | High |
| Corrosion Resistance | Excellent | Moderate | Excellent |
| Life Span | 20+ Years | 5–10 Years | 25+ Years |
Why Choose Thunder Earthing
Our electrodes are manufactured using advanced bonding technology that ensures uniform copper thickness and strong adhesion across every rod — not just the samples that get tested. Each batch undergoes quality checks before dispatch to confirm it meets IS 3043 requirements.
- Direct manufacturer pricing — no middleman markup
- Bulk supply capability across India
- Custom sizes available on request
- Fast delivery and dedicated support
Standards & Compliance
Manufactured in accordance with IS 3043 (Code of Practice for Earthing) issued by the Bureau of Indian Standards. This is the primary Indian standard governing protective earthing design and is the specification electrical inspectors and consulting engineers check for on every project.
Frequently Asked Questions (FAQs)
What is a copper bonded earthing electrode used for?
It’s used to safely dissipate fault current and lightning energy into the ground, protecting people, equipment, and buildings from electrical hazards.
What is copper bonding, exactly?
It’s the process of permanently fusing copper onto a steel core through electrolytic deposition, rather than surface plating. This gives the rod steel’s mechanical strength combined with copper’s conductivity and corrosion resistance, and the bond doesn’t peel or crack during installation.
What coating thickness should I choose?
Our copper bonded electrodes are available with 100–250 micron coatings depending on size — 250 microns is the standard for long-term, low-maintenance installations.
Are copper bonded electrodes better than GI electrodes?
Yes. Copper bonded electrodes offer significantly better corrosion resistance and last 20–30+ years compared to 5–8 years for GI electrodes, though GI remains a lower-cost option for temporary or budget-constrained installations.
What coating thickness should I choose?
Need a copper bonded earthing electrode for your project? Get direct manufacturer pricing, bulk supply, and custom sizing.
