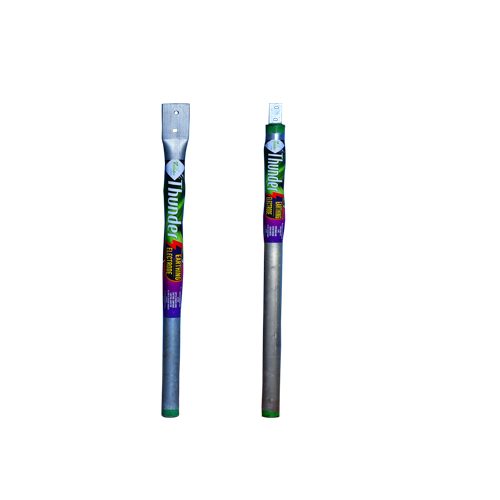

Galvanized Iron Earthing Electrode
Product Overview
Every earthing system needs an electrode that can sit in the soil for years and keep doing its job without attention. A galvanized iron earthing electrode gives you that at a price point copper couldn’t match.
Thunder Earthing supplies these electrodes from our base in Salem, Tamil Nadu, mild steel pipes that go through hot-dip galvanizing, a process that coats the steel in a protective layer of zinc, giving it the corrosion resistance to sit underground for 15 to 25 years depending on soil conditions.
It’s the electrode of choice when a project needs solid, standards-compliant earthing without the premium of a copper bonded system residential complexes, small commercial buildings, and LT distribution boards where fault current levels don’t demand copper’s extra conductivity.
Features
- Hot Dip galvanization to protect from corrosion
- Reliable and Better product life
- Absolutely maintenance free in consequence taking out maintenance cost
- TS Earth electrode are well designed for rapid fault current dissipation
- Simple and quick installation
- Less space required
- No need of extra water pouring at regular interval, because it retains the moisture Consistency
- While can be made available in Strip in pipe or pipe in pipe as per customer’s requirements
Industries trust chemical Earthing
- Petrochemical, LNG and nuclear facilities
- Data centres, telecom, and broadcasters
- Process control and automation
- Corrections, hospitals, and 911 centres
- Government, military, and defense installations
- T & D operations, substations, and wind turbines
How hot-dip galvanizing protects the electrode
Not all galvanized iron earthing electrodes are made the same way. Two processes dominate the market, and they age very differently underground.
Hot-dip galvanizing involves immersing the steel pipe in molten zinc, forming a dense, metallurgically bonded coating across the entire surface, including welds and cut ends. Electro-galvanizing, by contrast, electroplates a much thinner zinc film onto the surface.
It’s cheaper to produce, but the coating is thinner and more prone to wearing through at the points that matter most: the tip driven into the ground and any cut or threaded section.
The electrodes we supply carry a 70–80 micron hot-dip zinc coating, giving them a service life of 15–25 years in standard soil conditions. In more aggressive soils high salinity, high acidity, waterlogged sites that lifespan sits toward the lower end of the range, which is worth factoring into your electrode spacing and maintenance planning.
Comparison Table
Galvanized iron electrode | Copper bonded electrode | |
Coating | 70–80 micron hot-dip zinc | 250 micron molecularly bonded copper |
Service life | 15–25 years | 25–30+ years |
Conductivity | Standard | Roughly 6x higher than GI |
Cost | Lower | Mid-range |
Best suited for | Residential, small commercial, LT distribution boards | Substations, hospitals, telecom towers — anywhere IS 3043 compliance is critical |
Neither option is universally “better”; it depends on your fault current levels, soil resistivity, and how many electrodes your budget allows. For lower-tension installations where a slightly shorter service life is an acceptable trade-off for upfront cost, galvanized iron is a sound, standards-compliant choice. For high fault-current sites where you need to hit ≤1 ohm in fewer electrode installations, copper bonded is worth the difference — see our copper bonded earth rod range for that comparison.
Built to IS 3043 and IS 2629
IS 3043 is the Bureau of Indian Standards’ Code of Practice for Earthing, and IS 2629 governs the galvanizing specification for iron and steel products. Every galvanized iron earthing electrode we supply is verified against both checked for zinc coating thickness, pipe wall thickness, and mechanical strength before dispatch.
How a galvanized iron earthing electrode is installed
Installation follows the same general principles as any vertical earth electrode under IS 3043. The electrode is driven or lowered into an earthing pit typically excavated to a depth that clears the electrode’s full length plus working room at the base and the annular space around it is packed with a conductive backfill compound.
The compound keeps the soil around the electrode moist and chemically active, which is what actually keeps earth resistance low and stable over the years, rather than the electrode alone.
Where a single electrode doesn’t bring resistance down to the target value, additional electrodes are added and bonded together, spaced apart so their surrounding zones of influence in the soil don’t overlap and reduce each other’s effectiveness — a standard practice across earthing design regardless of electrode material. Thunder Earthing supplies matching backfill compound sized for these installations, so the electrode and the fill can be specified together rather than sourced separately.
Why engineers specify Thunder Earthing
We supply galvanized iron earthing electrodes sourced against strict quality requirements — every batch is checked for zinc coating thickness, pipe wall thickness, and mechanical strength before it goes out, so what reaches your site matches what’s specified on the drawing.
We supply pan-India, directly to electrical contractors, EPC companies, consultants, and project owners — which means competitive direct pricing, full documentation for project compliance records, and technical support from people who work with these products daily, not a generic order desk. For projects that need both GI and copper bonded electrodes across different parts of the same site, we supply both, so specification and delivery stay consolidated with one supplier.
We supply galvanized iron earthing electrodes sourced against strict quality requirements — every batch is checked for zinc coating thickness, pipe wall thickness, and mechanical strength before it goes out, so what reaches your site matches what’s specified on the drawing.
We supply pan-India, directly to electrical contractors, EPC companies, consultants, and project owners — which means competitive direct pricing, full documentation for project compliance records, and technical support from people who work with these products daily, not a generic order desk. For projects that need both GI and copper bonded electrodes across different parts of the same site, we supply both, so specification and delivery stay consolidated with one supplier.
Choose Your Electrode Size
FAQs
What is a galvanized iron earthing electrode?
It’s a grounding electrode made from mild steel pipe with a hot-dip galvanized zinc coating, used to safely dissipate fault current into the ground.
Which size do I need — 40mm or 50mm?
40mm suits residential and small commercial LT installations. 50mm is the better fit for medium industrial plants and 11kV substations, where the larger soil-contact surface helps lower earth resistance.
How long does a galvanized iron earthing electrode last underground?
Electrodes supplied by Thunder Earthing are rated for 15–25 years, depending on soil conditions — shorter in high-salinity or acidic soils, longer in standard conditions.
Is a galvanized iron electrode compliant with IS 3043?
Yes — both the 40mm and 50mm electrodes we supply meet IS 3043 and IS 2629 requirements.
Should I choose galvanized iron or copper bonded?
It depends on your fault current levels and required service life. GI is the more economical, standards-compliant choice for lower-tension work; copper bonded is worth the added cost for critical infrastructure needing lower resistance and a longer lifespan.
