ESE Lightning Arrestors
ESE Lightning Arrestors
An ESE lightning arrestor—short for Early Streamer Emission lightning arrestor is an advanced air terminal mounted at the highest point of a structure to intercept lightning strikes before they reach the building, its equipment, or the people inside it. Unlike a conventional lightning rod, which waits passively for a strike to find it, an ESE terminal is designed to trigger its own upward streamer earlier than the surrounding structures and natural high points nearby, giving it a head start in capturing the down-coming leader and guiding that energy safely to earth.
Thunder Earthing supplies ESE lightning arrestors in two coverage-radius options—the 60m ESE Lightning Arrester and the 107m ESE Lightning Arrester — sized to match the footprint of the structure or open area being protected. A single ESE terminal, positioned correctly, can protect a significantly larger radius than a conventional rod, which is what makes it a practical, cost-effective choice for buildings, solar parks, and industrial yards where covering the same area with multiple conventional rods would be impractical.
How an ESE Lightning Arrestor Works
Every thunderstorm builds up an electrical charge differential between the clouds above and the ground below. As that differential grows, objects on the ground — buildings, trees, structures — begin forming upward streamers, each competing to be the one that connects with the descending lightning leader and completes the strike path.
An ESE terminal is built to win that race. During the early stage of storm development, it collects and stores ground charge, then releases it as a strong, consistent upward streamer earlier than the air terminals or structures around it. That timing advantage is the entire principle behind ESE technology — the earlier the terminal launches its streamer, the more reliably it intercepts the leader before it can strike anywhere else nearby, which is what allows one terminal to protect a wider radius than a conventional rod would.
Features
- Protects a significantly larger radius than a conventional lightning rod, reducing the number of terminals needed per site
- A cost-effective solution for large, open areas — solar parks, industrial yards, and sprawling commercial sites — where the protection radius directly reduces material and installation cost
- Protects open surroundings as well as the structure itself, not just the building footprint
- Available in 60m and 107m coverage options to match different site sizes and risk profiles
- Straightforward integration with a down conductor and earthing system for a complete strike-to-ground protection path
Choose Your ESE Lightning Arrestor Size
Applications
- Solar power plants — wide-radius coverage across array fields where conventional rods would need many more installation points
- Industrial buildings and factories — rooftop protection for structures housing sensitive equipment
- Commercial buildings and IT parks — safeguarding server infrastructure and electrical systems from direct strikes
- Open industrial yards and storage sites — protecting both the built structure and the surrounding open ground
- Telecom towers and utility infrastructure — high-point installations exposed to elevated strike risk
ESE Lightning Arrestor vs Conventional Copper Lightning Arrester
Feature | ESE Lightning Arrestor | Conventional Copper Lightning Arrester |
Protection radius | Large — single terminal covers wide area | Smaller — more terminals needed per site |
Best for | Solar parks, large open sites, sprawling commercial roofs | Standard buildings, smaller structures |
Installation points needed | Fewer, due to wider coverage | More, to achieve equivalent coverage |
Mechanism | Early streamer emission — active strike interception | Passive strike interception |
Cost efficiency at scale | High, for large-area sites | Better suited to compact structures |
Both systems ultimately do the same core job — giving lightning a safe, controlled path to earth — but the ESE terminal’s wider radius is what makes it the more economical choice once the area needing protection grows beyond a single small structure.
Why Choose Thunder Earthing
Thunder Earthing supplies complete earthing and lightning protection systems ESE lightning arrestors, conventional copper lightning arresters, earthing electrodes, strips, and backfill earthing compound — so a project can source its entire strike-to-ground protection assembly from one supplier instead of piecing it together across multiple vendors.
- Direct supply, pan-India, to electrical contractors, EPC companies, consultants, and project owners
- Technical support for matching arrestor size and protection radius to your site layout
- Bulk supply capability with fast turnaround
- Based in Salem, Tamil Nadu, with hands-on field experience behind our product recommendations
Frequently Asked Questions
How is an ESE lightning arrestor different from a conventional lightning rod?
It’s an early streamer emission air terminal mounted at a structure’s highest point, designed to trigger an upward streamer earlier than surrounding objects, intercepting lightning strikes and directing the current safely to earth.
What is an ESE lightning arrestor?
A conventional rod passively waits for a strike to reach it. An ESE terminal actively triggers its streamer earlier, which gives it a wider effective protection radius — meaning fewer terminals are needed to cover the same site.
Which size ESE lightning arrestor do I need — 60m or 107m?
It depends on the size and layout of the area you’re protecting. 60m suits standard buildings and moderate-sized sites; 107m is better suited to larger footprints like solar parks or expansive industrial complexes.
Can an ESE lightning arrestor protect open areas, not just buildings?
Yes — its coverage radius extends beyond the structure itself, which is what makes it particularly effective for solar parks and open industrial yards.
Do I still need earthing for an ESE lightning arrestor system?
Yes. The arrestor intercepts the strike, but a proper earthing system — electrodes, down conductors, and backfill compound — is what safely dissipates that current into the ground.

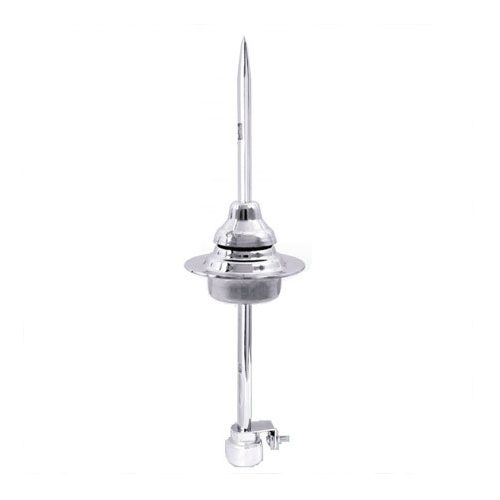

ESE Lightning Arrestor
Early Streamer Emission (ESE) lightning arrestor that actively triggers an upward streamer earlier than surrounding structures, intercepting the lightning leader before it strikes the building. Protects a significantly wider radius than a conventional rod, reducing the number of terminals needed per site. Available in 60m and 107m coverage options for standard buildings through large solar parks and industrial sites.
Product Brand: Thunder Earthing
Product Currency: INR
Product Price: 22500
Product In-Stock: InStock
