Earth Pit Chamber with Cover
An earth pit chamber (also called an earthing chamber or earth pit inspection chamber) is the enclosure that protects the top of an earthing pit below ground and gives you a clear point to inspect and test the earth electrode without digging the site up again. Fitted with a removable cover, it keeps soil, water and debris away from the electrode connection while staying flush with the floor or ground.
Thunder Earthing supplies earth pit chambers with covers made from UV-stabilised polypropylene (PP), along with the electrodes, strips and backfill compound that go into the pit. You can source the complete earthing assembly from one supplier.
What is an Earthing Pit Chamber?
An earth pit chamber is a protective enclosure fitted at the top of an earthing pit. With a removable cover, it shields the electrode connection from soil, water and damage, and lets engineers inspect and test the earth resistance without excavating.
Chamber and Cover: Two Parts, One Assembly
The standard earth pit chamber is a round, moulded polypropylene chamber with a green cover. It works well with the most typical single-electrode pits used in light industrial, commercial, and residential settings.
Detail | Specification |
Shape | Round |
Material | High-grade polypropylene (PP) |
Approx. height | 260 mm |
Approx. top diameter | 260 mm |
Approx. base diameter | 210 mm |
Approx. weight | 2 to 3 kg |
Colour | Black chamber with green cover |
Finish | Smooth, matte |
Mounting | In-ground (earth mount) |
Protection rating | IP66 |
Operating temperature | -10 °C to +60 °C |
Humidity tolerance | Up to 95% |
Connection | Bolted or clamp connection to the electrode or strip |
The polypropylene body does not rust, is UV-stabilised for outdoor use and needs no maintenance. It is also light enough for one person to carry and position on site.

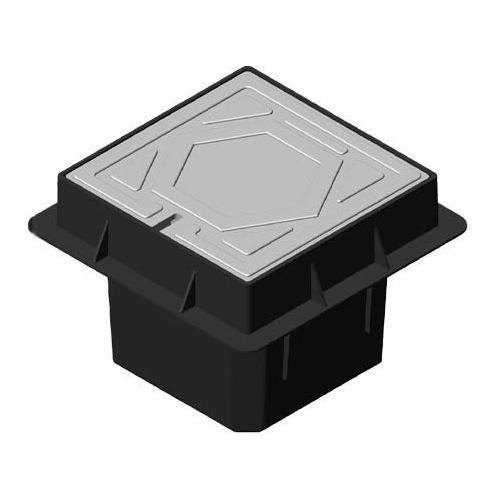

Earthing Pit Cover
We also provide a square PP earthing pit cover if the chamber or pit is already constructed and you just need a replacement or extra cover.
Detail | Specification |
Shape | Square |
Size | 180 x 180 mm |
Material | Polypropylene (PP) |
Colour | Black and white |
Locking | Bolt lock |
Supplied as | Cover only (without frame) |
Load class | Light duty, up to 2 ton |
Properties | Weatherproof, corrosion-proof, non-conductive, low maintenance |
Chamber and Cover: How They Work Together
The chamber and the cover do different jobs.
The chamber forms the enclosure around the top of the pit. It holds the surrounding soil back, protects the electrode connection from damage and gives you room to work on the clamp or strip joint.
The cover closes the chamber. It keeps out water, dirt and tampering, and it opens when an engineer needs to inspect the connection or attach a resistance tester.
Because both parts are moulded to fit each other, installation is quicker and more consistent than building a brick or masonry chamber on site, especially when a project has many pits.
Why Earth Pit Chambers Matter for Testing
IS 3043, the Indian code of practice for earthing, recommends that earth resistance is measured periodically so a degrading earth is caught early. That is only practical when the electrode connection is accessible through a proper earth testing point, which is what the chamber provides.
A chamber with a removable cover lets an engineer:
- Open the pit and inspect the electrode and connection visually
- Connect an earth resistance tester to the electrode or strip
- Record the reading and compare it with the design value
- Close the cover and restore the finished surface
The acceptable resistance value depends on the installation type and the design requirement, so confirm the target with your electrical designer or consultant. Without an accessible chamber, many sites skip testing altogether and a failing earth goes unnoticed.
Where Earthing Pit Chambers are Used
Earthing pit chambers and covers are specified across diverse applications where accessible, protected earthing points are required:
- Residential and commercial buildings: apartments, offices, schools and hospitals
- Industrial plants: factories, warehouses and workshops
- Solar power plants: array and structure earthing, including lightning protection earthing
- Telecom towers and data centres: pits that are tested often, including chemical earthing pits
- Substations and transformer yards: where lighter pits sit in non-traffic areas
- Gardens, footpaths and open areas: pits with foot traffic only
How an Earthing Pit Chamber is Installed
- Excavate the pit: Dig to the required depth (typically 2.5–3m for vertical electrodes)
- Install the electrode: Drive or lower the GI or copper bonded electrode into the pit
- Add backfill compound: Pack earthing compound around the electrode in layers (dry or slurry method)
- Position the chamber: Place the earthi pit chamber over the electrode, ensuring it’s level and the top will sit flush with the finished floor/ground level
- Backfill around chamber: Compact soil around the chamber walls to secure it in position
- Connect the earthing strip: Bond the GI or copper strip to the electrode using appropriate clamps or exothermic welding
- Install the cover: Place the earthing pit cover on top of the chamber, ensuring a snug fit
- Mark the location: Paint or mark the cover location for easy identification during testing
Need a Heavier Load Rating?
For pits under driveways, roads or industrial yards, tell us your expected load and we will suggest a suitable cover and chamber. Heavy-duty options such as cast iron covers and RCC chambers are available on request. Please share your site layout and traffic type when you enquire.
How to Choose the Right Earth Pit Chamber
- Check the load above the pit. Foot traffic and garden areas suit PP. Vehicle areas need a heavier-duty cover.
- Match the chamber to the electrode. Make sure the chamber top fits over your pipe, rod or plate electrode and leaves room for the clamp or strip joint.
- Consider the environment. UV-stabilised PP handles sun, rain and humidity, and does not corrode in damp or coastal sites.
- Plan for testing. Leave clear access to the cover and mark its position on the layout drawing.
- Order enough for the project. Ask us about bulk supply and consolidated delivery for large jobs.
How an Earth Pit Chamber Is Installed
- Excavate the pit to the depth and size set in your earthing design.
- Install the electrode. Place a GI electrode or copper bonded electrode in the pit.
- Add backfill. Pack earthing backfill compound around the electrode in layers.
- Connect the strip. Bond the GI earthing strip or copper strip to the electrode with suitable clamps or by exothermic welding.
- Position the chamber. Set the chamber over the electrode top so it sits level and flush with the finished surface.
- Fill around the chamber. Compact soil around the walls to hold it steady.
- Fit the cover. Close the chamber and secure the cover.
- Mark the location so the pit is easy to find for later testing.
Why Buy from Thunder Earthing
- Complete earthing supply: electrodes, strips, backfill compound and earthing chambers with covers from one source
- Moulded UV-stabilised PP: corrosion-proof, light and maintenance free
- Technical support: help matching chamber size and cover load class to your site
- Bulk supply: direct supply to electrical contractors, EPC companies, consultants and project owners across India from our Salem, Tamil Nadu warehouse
- Single point of contact: one supplier for queries, delivery and after-sales support
FAQs
What is an earth pit chamber?
An earthing pit chamber is the structural enclosure that houses an earthing pit below ground, paired with a removable earthing pit cover that seals the top and provides access for testing and maintenance. It protects the electrode and connections while enabling IS 3043 compliance through accessible testing points.
What's the difference between an earth pit chamber and an earth pit cover?
The earthing pit chamber is the load-bearing enclosure around the pit (the “box” that sits underground). The earthing pit cover is the lid that sits on top of the chamber, sealing it while allowing access. They’re typically supplied and installed as one assembly.
What is the standard earth pit chamber size?
Our standard round PP chamber is about 260 mm high, with a top diameter of about 260 mm and a base diameter of about 210 mm. It weighs roughly 2 to 3 kg. Contact us if you need another size.
What material should the cover be?
It is made of high-grade polypropylene (PP), UV-stabilised and corrosion resistant, so it suits outdoor and humid locations.
What is the earth pit chamber price in India?
Price depends on the type, quantity and delivery location. Send us your requirement and we will share a quote.
How often should an earth pit be tested?
IS 3043 recommends periodic testing, and the interval depends on the installation and your inspection schedule. Many sites test at least once a year and before the monsoon. Follow your consultant or site safety plan.
Do you supply the electrode and backfill compound too?
Yes. We supply copper bonded electrodes, GI electrodes, earthing strips and backfill compound, so the whole pit can be ordered together.
