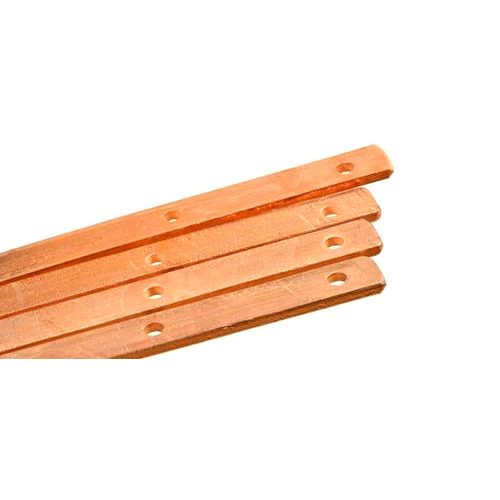

Copper Bonded Strip
Copper Bonded Strip
Nickel Sealed Copper Bonded Strips are mainly used for Electrical Earthing and Lightning Protection Application, which includes Earthing Conductor, Lightning Down Conductor, Lightning Mesh Formation etc. The combination of steel and copper Provides a Cost-Effective Solution substituting pure copper. They are available in standard Coating Thickness of 100/250microns.
NB: Customised Products are also available at Customer Request. Please be in touch with us for more information.
Features
- Effectively substitutes Copper for Electrical Earthing and Lightning Protection Applications
- Holes and other fabrications are done prior to Copper Bonding and no part of base metal will be exposed.
Technical Specifications
| Specifications | Details |
|---|---|
| Base Material | Cold Rolled Steel (Tata/Jindal) |
| Base Coating Material | Nickel |
| Coating Material | 99.9% Pure Electrolytic Copper |
| Coating Thickness | 250/100 microns (avg) |
| Available Strip Dimension | 25x3mm, 32x3mm,25x4mm, 25x6mm, 40x5mm, 50x6mm, 75x6mm |
| Length | 2.5m to 6m |
In House Test
- Coating Thickness Test as per Clause 9.6.1 UL 467
- Bend Test as per Clause 9.7.2 UL 467
- Corrosion Resistance Test- Copper Accelerated Acetic Acid Salt Spray Test as per Clause 4.5 IS 1772:1973
- Environmental Test as per Clause 5.3.5 IEC 62561-2:2018
